10V Voltage reference
Last updated: Januari 6, 2011
|
|
|
Internals
|

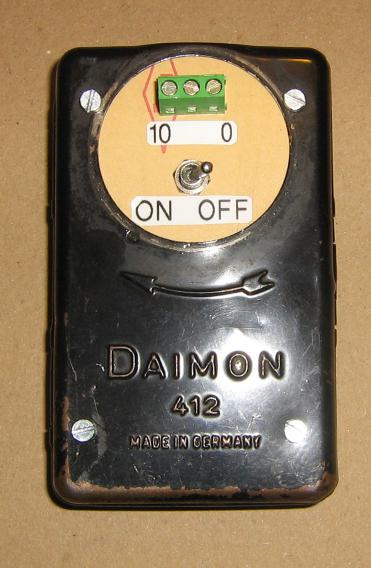

Front
|

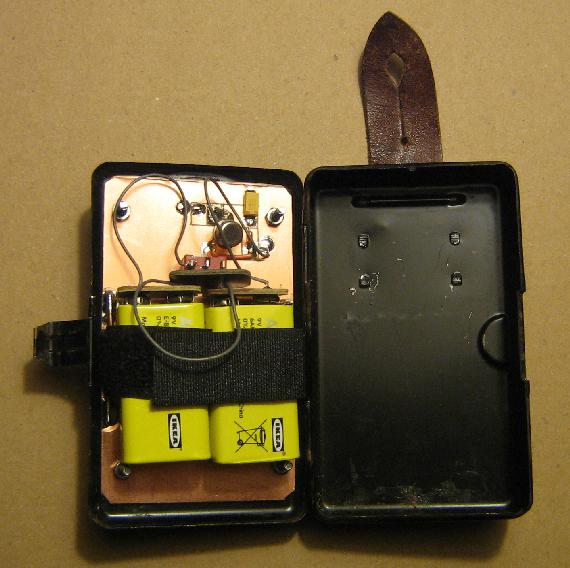

An AD581K based voltage reference. The 1N4148 is there to protect the
AD581 from a reversed power supply.
TODO
- Measure voltage with calibrated voltmeter
Downloads
Archive containing the Xcircuit file (encapsulated pos
tscript).
