Video Amplifier

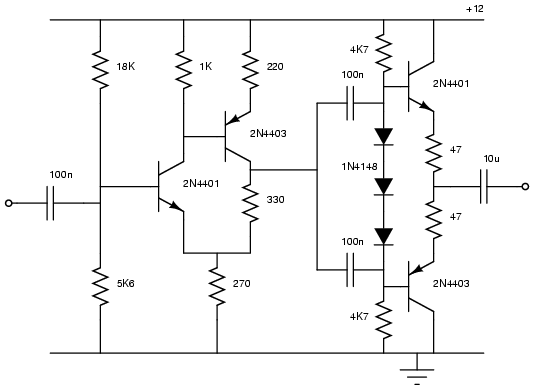

A general purpose video amplifier. Bandwidth is approx. 15MHz.
![[videoamp.png]](videoamp.png)
As usual the choice of components was completely determined by what was
available in the junkbox. Other transistors like 2N3904/2N3906 or BC548/BC558
will probably work just as well.
Archive containing the Xcircuit file (encapsulated postscript).
