Variable Power Supply for Tube Circuits
Last updated: Februari 9, 2011
|
|
|
| Front |
|
Inside |

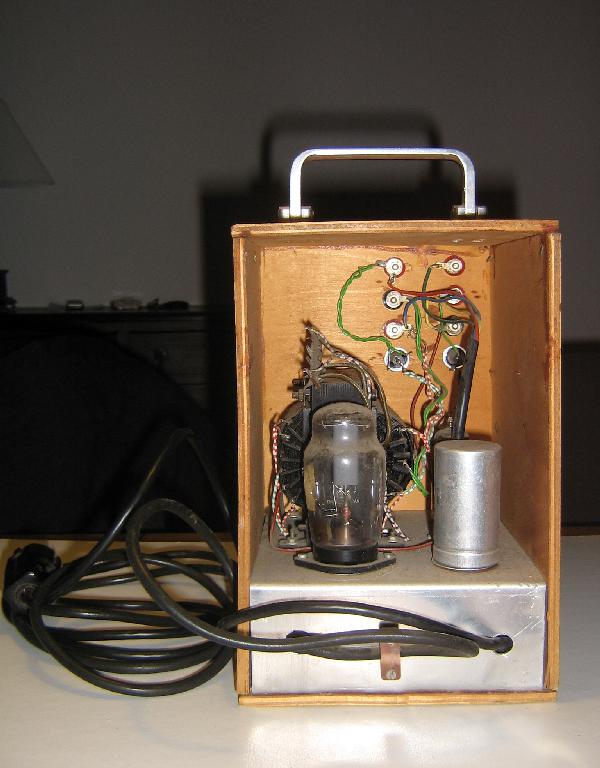

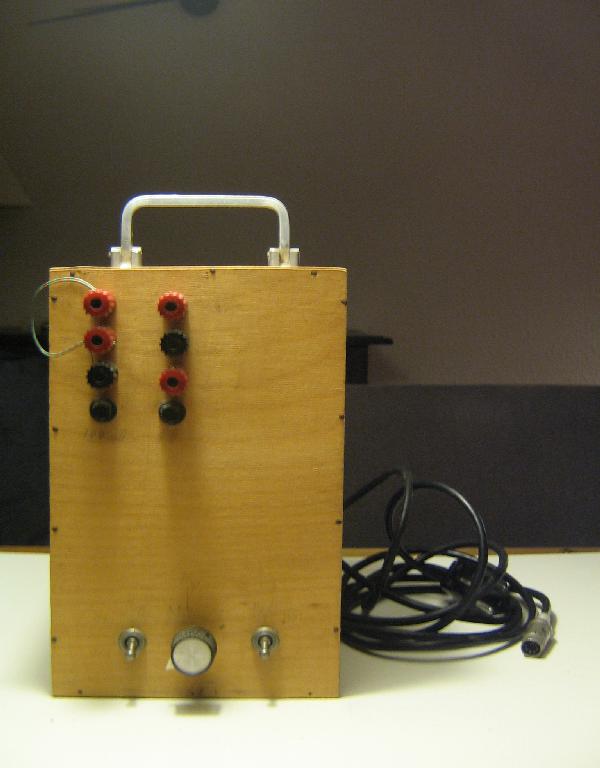

A variable power supply for tube circuits. Build around 1970.
![[tube_psu.png]](tube_psu.png)

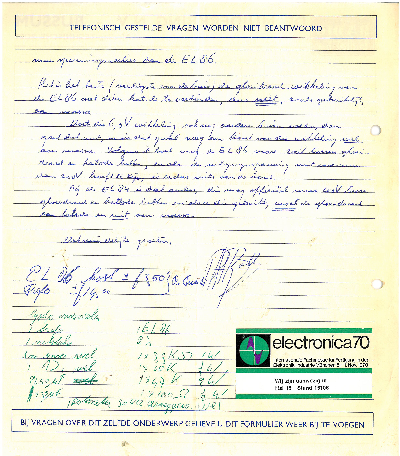

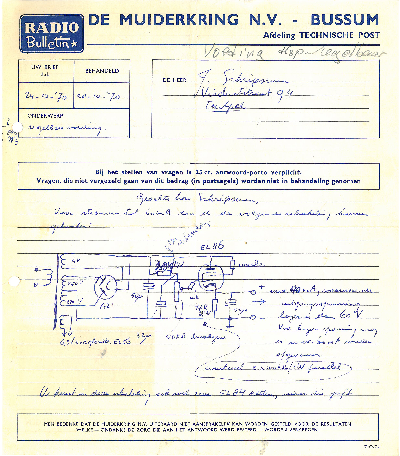

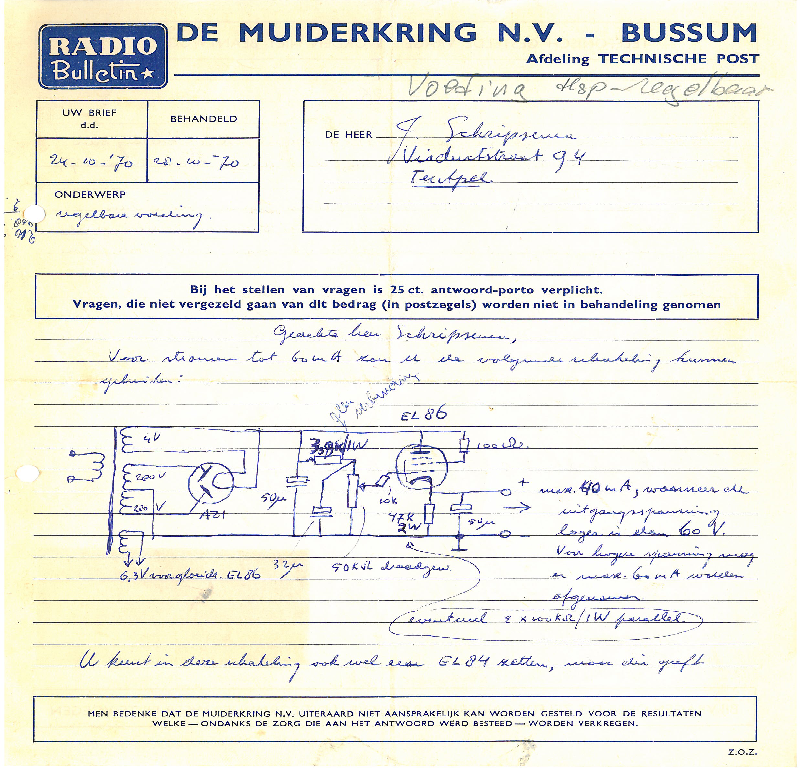

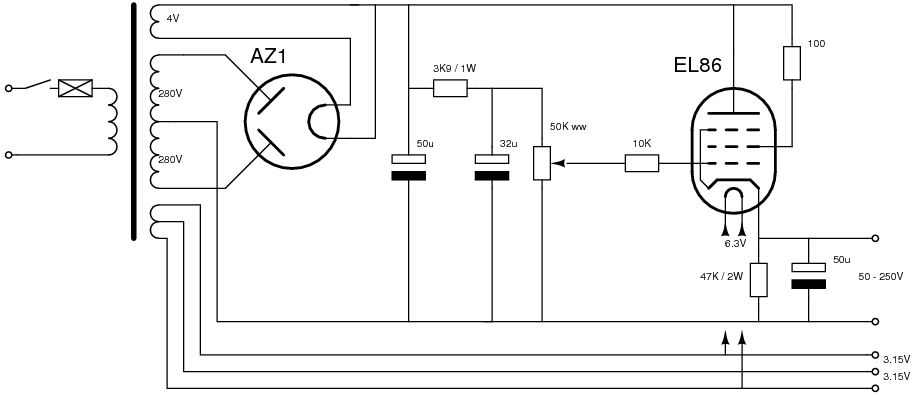

The original 1970 design from 'De Muiderkring' with my 'annotations'.
Click for a larger image.
Archive containing the Xcircuit file (encapsulated postscript).
