Soundcard Interface

Last updated: October 28, 2013

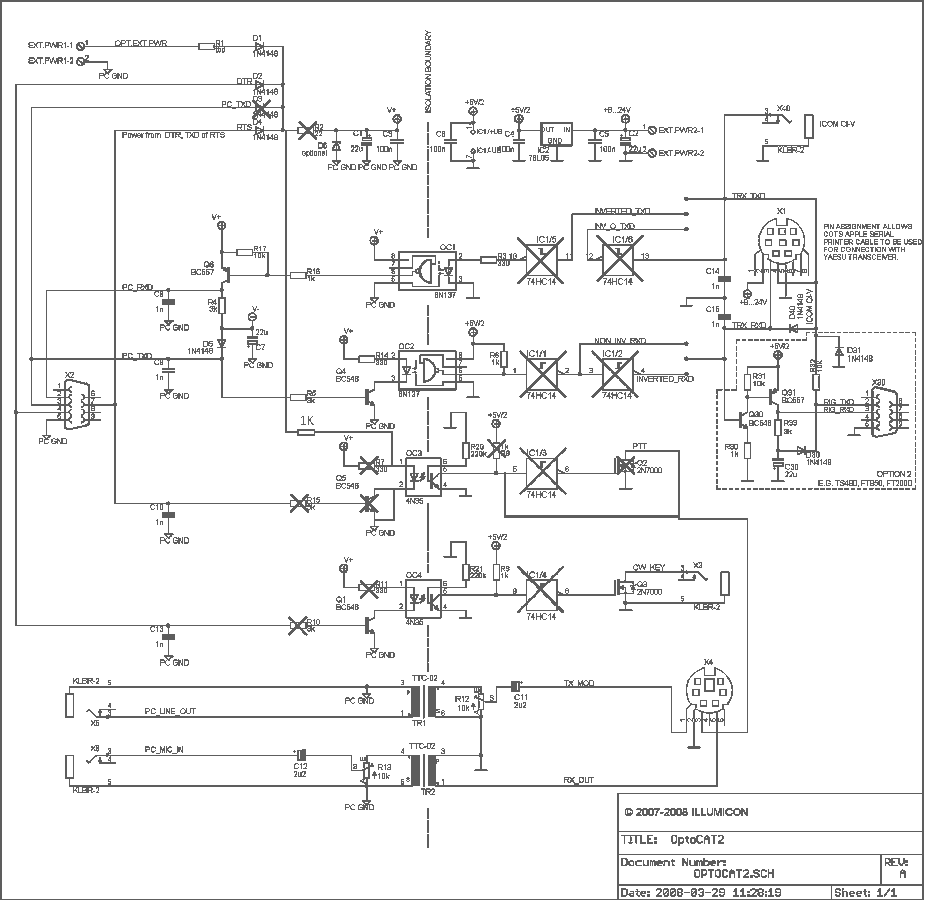

The OptoCAT2 soundcard interface seems to overload the serial interface signals DTR and RTS in some cases. With the mods below is works with a TS2000.

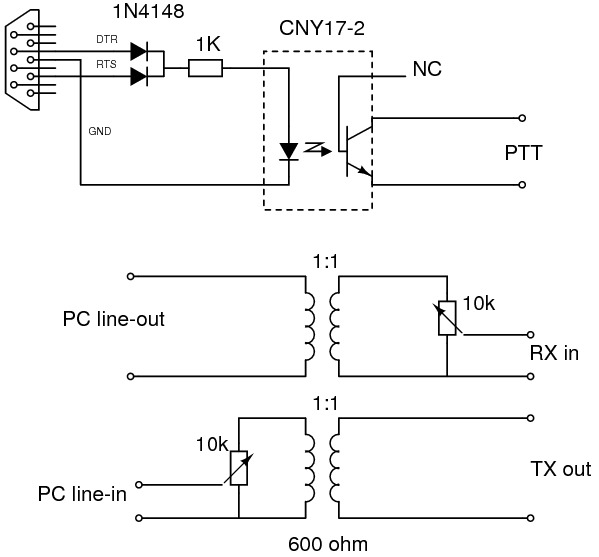

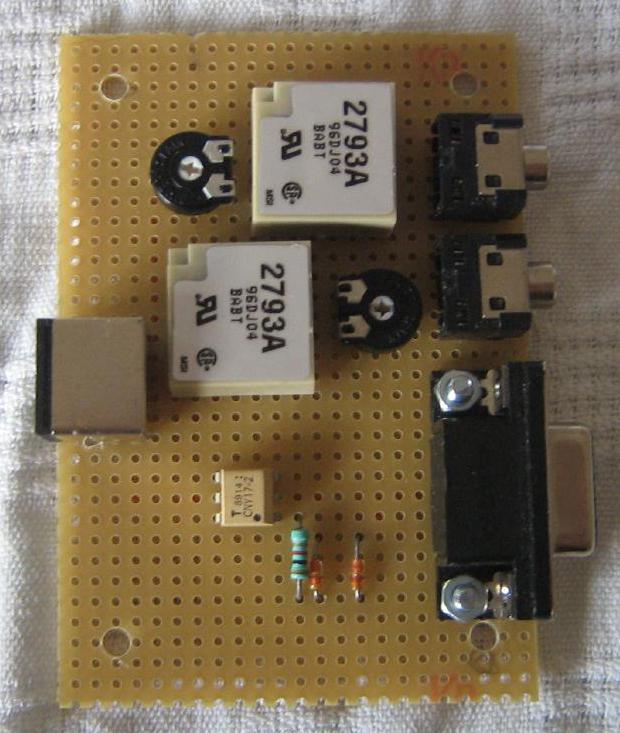

If you do not have such an interface, the circuit below also does the job. The transformers are 600 ohm audio transformers salvaged from old modems.

References:
