Multi output power supply

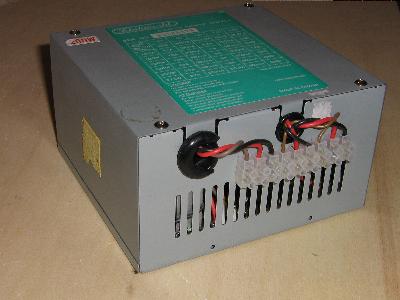

A multi output power supply with components from the junkbox. Nothing fancy, a design straight from the textbooks.

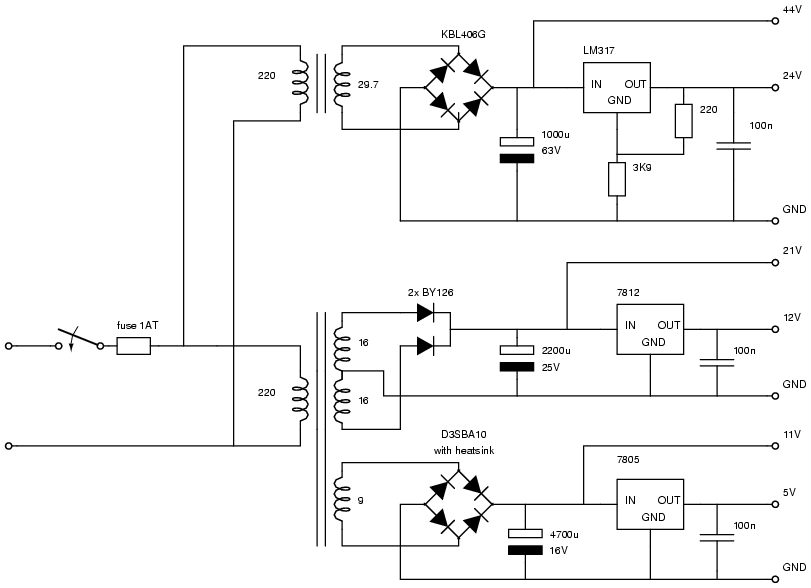

![[pwrsupply1.png]](pwrsupply1.png)

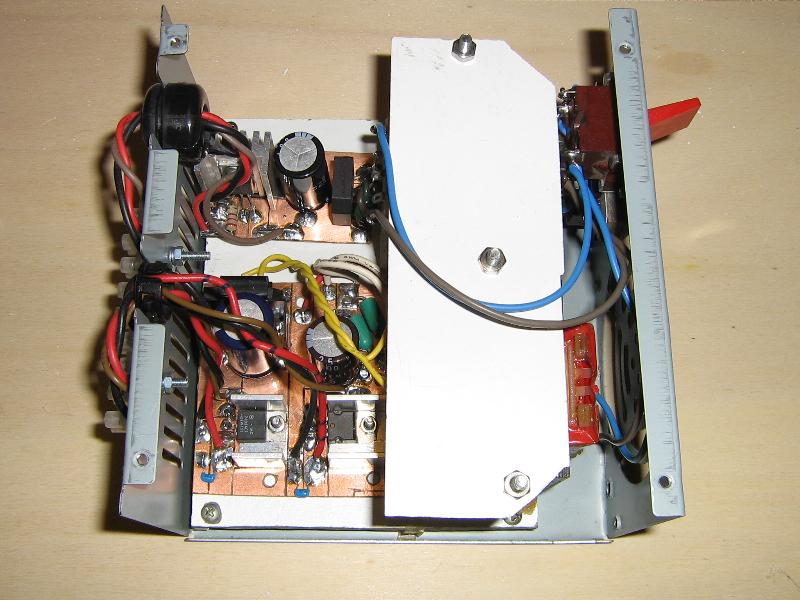

Output ratings depend on the transformor ratings. In my case the ratings are: 5V@1A, 12V@300mA and 24V@500mA.
The unregulated outputs are usefull in case you need other voltages, e.g. a 33V
tuning voltage for an old TV tuner.
Archive containing the Xcircuit file (encapsulated postscript).
