RS232 console adapter for the CC1000
Last updated: December 15, 2007
Under construction
The RJ45 console connector of the CC1000 is compatible with
the Yost serial device wiring.
Use a straight cable with the adapter wiring below

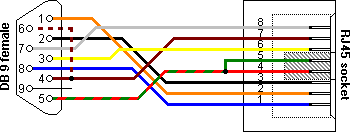

Yost DB9 to RJ45 serial DTE adapter wiring
| RJ45 |
Function |
Color |
DB9 |
Remark |
| 1 |
CTS |
Blue |
8 |
Connected, not used |
| 2 |
CD |
Orange |
1 |
Connected, not used |
| 3 |
Rx |
Black |
2 |
Connected, used |
| 4 |
SG |
Red |
5 |
Connected, used |
| 5 |
SG |
Green |
5 |
Not connected |
| 6 |
Tx |
Yellow |
3 |
Connected, used |
| 7 |
DTR |
Brown |
4 |
Connected, not used |
| 8 |
RTS |
White |
7 |
Connected, not used |
References:
