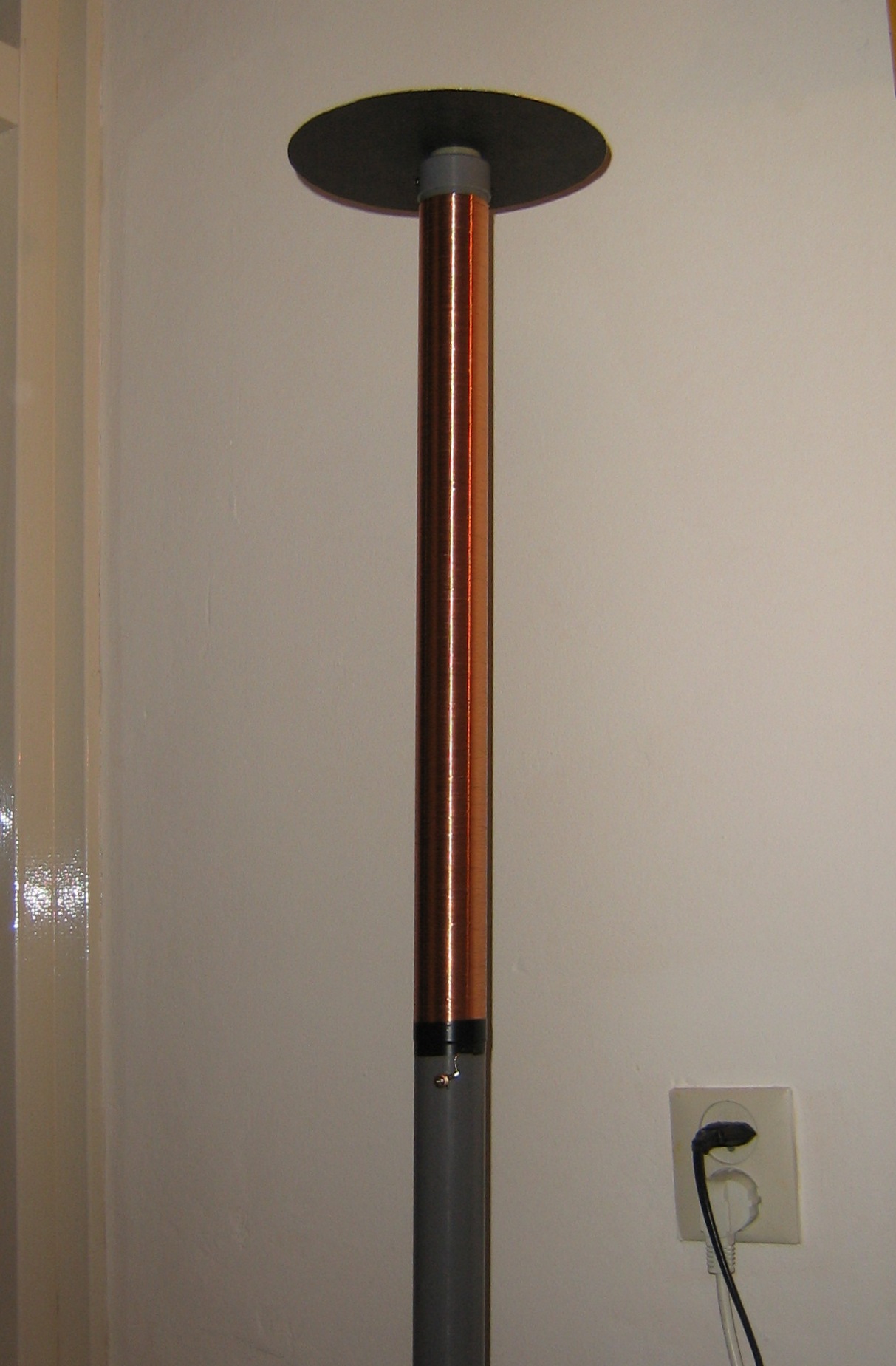

Broomstick antenna


This antenna has not been designed, but build with the materials at hand:
  • 1 meter of 40 mm PVC tube
  • A degaussing coil from an old TV with 0.5 mm wire
  • A 18 cm aluminium disc
  • Bits and pieces from the junk box


The length of the helix is 48.5 cm, the number of turns approx. 900.
